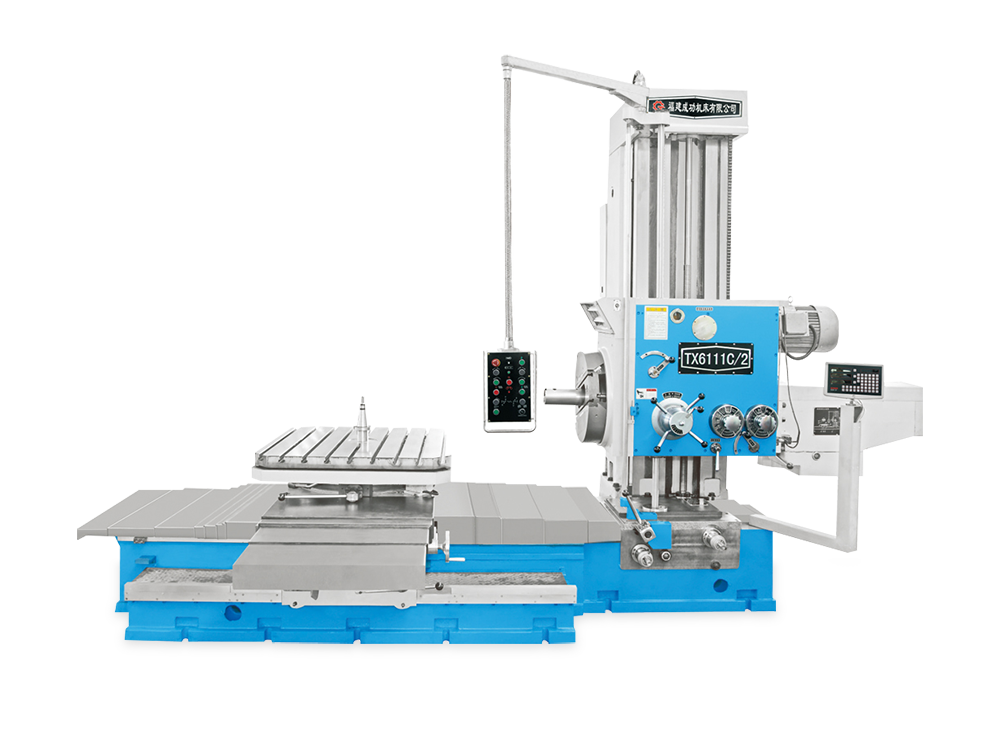

HORIZONTAL BORING MILLING MACHINE
TX6111T series horizontal milling&boring machines are suitable for rough and precision boring,milling in large and medium parts and box-parts.It is equipped with an optical device for positioning 90°in the work table,that can satisfy the turn around processing requirements of the large box-parts.
Product features
Technical parameter
1.TX6111T series horizontal milling&boring machines are suitable for rough and precision boring,milling in large and medium parts and box-parts.It is equipped with an optical device for positioning 90°in the work table,that can satisfy the turn around processing requirements of the large box-parts.The machine bed use wide guice way,it has good structure rigidity and large cross travel of table.It is equipped with power draw bar which easy for change tools.
2.TX6111T series is provided with a DRo and its reading accuracy is 0.005mm,it has reliability position precision.The machine use PLC controller.
| Specifications | Unit | Model | |
| TX6111T/1 | TX6111T/2 | ||
| Spindle diameter | mm | 110 | 110 |
| Spindle taper | mm | ISO50#(7:24) | ISO50#(7:24) |
| Spindle speed | r/min | 9-1000(18級) | 9-1000(18級） |
| Power of main drive motor | kW | 11 | 11 |
| Max. drilling capacity of spindle | mm | 50 | 50 |
| Max. boring capacity of spindle | mm | 300 | 300 |
| Speed of facing chuck | r/min | 6-221 | 6-221 |
| Traverse of facing chuck slide | mm | 170 | 170 |
| Max. boring capacity of facing chuck | mm | 600 | 600 |
| Table size（Lx W) | mm | 1200X1100 | 1200X1100 |
| Table load | kg | 2500 | 4000 |
| Transverse travel of table | mm | 1200 | with auxiliary rail |
| Vertical travel of spindle head | mm | 1100 | 1300 |
| ongitudinal travel of table | mm | 1500 | 1500 |
| Axial travel of spindle | mm | 600 | 600 |
| Rotary spindle、spindle box、worktable feeding range | mm/min | 12 級0.04-6mm/無極 | 12級0.04-6mm/無極 |
| DRO | X、Y | X、Y | |
| Overall dimensions of machine(L x W x H) | mm | 4900x2250x2950 | 4900x2850x3150 |
| Weight of machine | kg | 16000 | 18000 |
